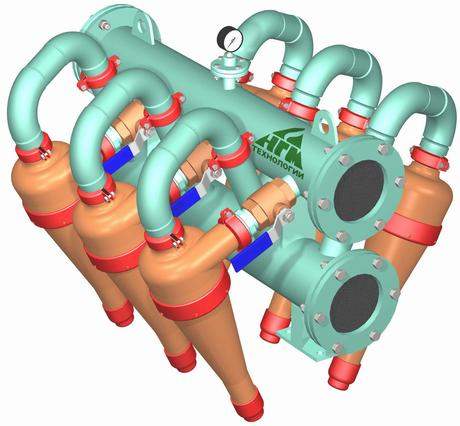

| ИГТ-1С |
| Capacity |
0,045+0,003 m3/sec |
| Smallest particles with density of 2600 kg/m3 removed by 95% during the work with drilling mud |
0,02 mm |
| Desilter inside diameter |
150+1,25 mm |
| Working pressure before hydrocyclone |
0,3+0,05 MPa |
| Cyclones numbers |
6 pieces |
| Regulation range of a sand orifice diameter |
12-20 mm |
| Maximum weight |
250 kg |
| -length |
1105 mm |
| -width |
926 mm |
| -height |
915 mm |
|
