Production / Solids Control Equipment / Type ДВС-III vacuum degasser

Type ДВС-III vacuum degasser

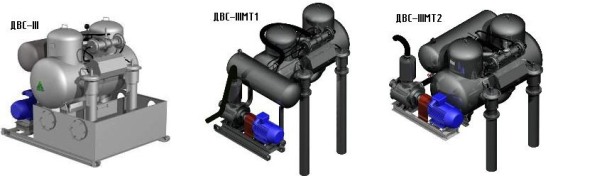

ДВС-III vacuum degasser

Represents automatic degassing installation of cyclic action consisting of two alternately working vacuum chambers and intended for degassing of drilling washing solids of all parameters ( including intensively foaming) with the purpose of restoration of their densities.

ДВС-III vacuum degasser
Productivity: l/s
-at degassing of intensively foaming solutions ( working vacuum of 22,4-24 in Hg) 45-50 L/s
-at degassing with a unstable gas phase (working vacuum of 11,8-15,7 in Hg) not less than 60 L/s
The residual maintenance of gas in aolution after degassing: %
-at intensively foaming solutions no more than 2 %
- at solutions with a unstable gas phase 0 %
Voltage of the electric motor 380 V
Power consumption 30 kw
Frequency 50+/-5 Hz
Overal dimensions: mm
-length 2850 mm
-width 2500 mm
-height 2500 mm
Maximum weight 3 100 kg
